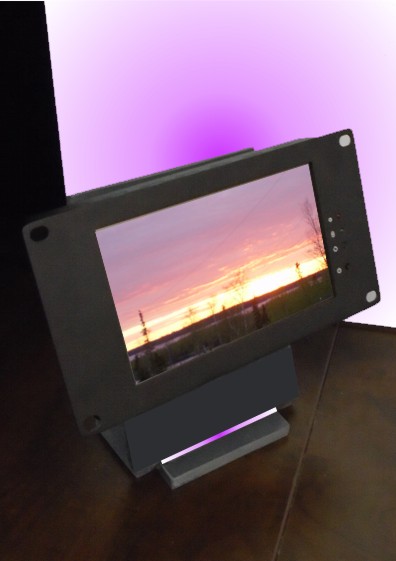

Touch-screen PC700 Features

Display Screen 7" TFT LCD
Resolution 800×480 (1,152,000 pixels)
Touch Panel 4-wire resistive
Brightness 450 cd/m2
Aspect Ratio 16:9
Operating System Debian GNU/Linux 8
CPU Intel N2800, dual-core 1.86 Ghz
Chipset Intel NM10 chipset
Memory 2 GB (DDR3) up to 4 GB
Storage Optional HD: PCIe mSATA SSD 32 GB
Ethernet card 1 x RJ-45 network card port, 10M/100M Ethernet
Panel interfaces 1x Audio output, 2x USB, 2x LAN,
1x VGA output, 1x HDMI output,
1x SIM slot, 2x DC 12V, 1x Mini XLR,
5x RS232 (COM2 Support RS232/RS485/RS422)
1x Antenna
Audio output AC97 4Ch, 3.1 Channels
Power consumption ≤ 24W
Working Temperature 0 – 50 ºC
Storage Temperature -10 – 65 ºC
Power Supply DC 6V-32 V (External power supply)
Dimension (LWD) 200 × 117 × 46 mm
Weight 1225 g
